Triple Attachment Pulley 2
Description

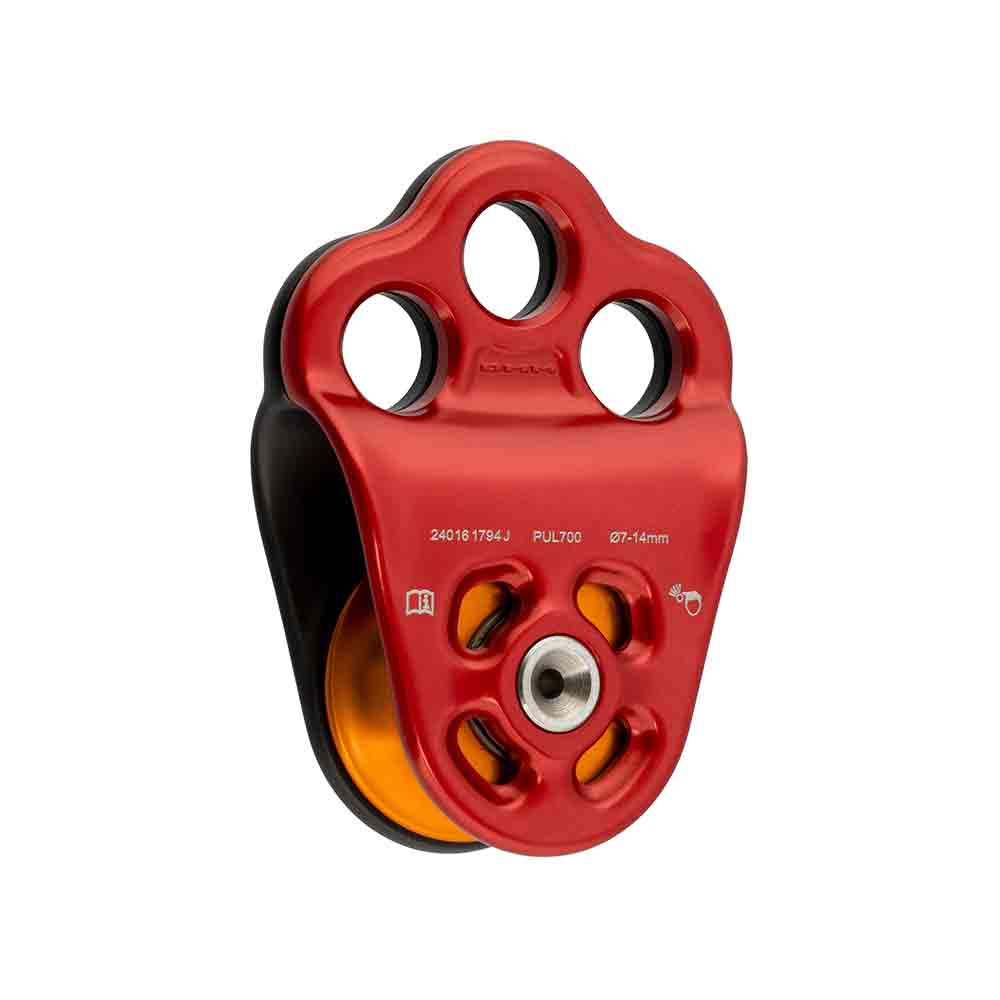

The DMM Triple Attachment Pulley 2 is the refined evolution of the industry-standard Hitch Climber System component, engineered for professionals who demand reliability at height. Its three-hole design streamlines gear rigging and enables offset loading to minimise rope friction. This generation introduces sealed bearings for superior efficiency compared to traditional bushings, while the expanded U-shaped channel—replacing the previous V-profile—facilitates smoother rope feed and enhanced performance in hitch climber applications. Purpose-built for demanding vertical work environments.
DMM Triple Attachment Pulley 2 Features
- Sealed bearings deliver higher efficiency compared to bushings.
- Straight side plates help tend hitches more effectively.
- U-shaped upper channel offers increased rope clearance for smoother handling in climbing systems.
- Integrated rigging plate simplifies organisation for single or multiple connections.
- Flared fairleads keep the rope running smoothly and efficiently.
- Wide compatibility with most carabiner shapes as well as rope and webbing connectors.
- Optimised attachment holes reduce unwanted carabiner rotation.
- Rounded hole edges allow direct textile connections, saving space, improving lift height, and reducing costs.
- Side plate design accommodates autoblock knots whether the rope enters from the side or bottom.
Specifications
| MBS: | 30kN |
| WLL: | 6kN |
| Dimensions: | 94 x 68 x 33mm |
| Weight: | 150g |
| Max Rope Diameter: | 14mm |
| Sheave Diameter: | 42mm |
| Certifications: | EN12278:2007 |
